SoC Specifications

Parameter	Value	How it is derived
NPU clusters / tensor cores	8 clusters, 32 tensor cores	4 cores × 128×128 MAC arrays per cluster
Peak dense compute	≈1.89 PFLOPS FP8; ≈0.94 PF BF16; ≈3.77 PF FP4	32 × 16,384 MAC × 2 × 1.8 GHz
On-chip SRAM	128 MB cluster scratchpad	16 MB per cluster, SECDED
HBM4	4 stacks, 8.19 TB/s, 192 GB	2048-bit × 8 Gb/s per stack; 48 GB stacks
DDR5	4 channels DDR5-6400, 204.8 GB/s, ≤ 512 GB	RDIMM, ECC
Host interface	PCIe 7.0 x16 / CXL 4.0 Type-2, ≈242 GB/s per direction	128 GT/s PAM4, FLIT mode
Scale-out network	8 × 100 GbE = 800 Gb/s, RoCEv2 offload	1 × 112G PAM4 SerDes lane per port
DMA	8 engines, 1.0 TB/s aggregate	512-bit port at 2 GHz each
Control CPUs	4 isolated domains × 4 RV64 harts	Plus RV32 RoT, PM and scheduler micro-controllers
Physical address	48-bit	256 TB address space
Process / package (assumed)	3 nm-class, ~800 mm², 2.5D with 4 HBM4 stacks	To be confirmed by physical design
TDP envelope	750 W	Liquid or high-end air cooling

Block specification summary

Block	RTL module	Inst.	Clock	Power domain	CSR win.	IRQs	Key figure
NPU cluster (SS1)	npu_cluster	8	clk_npu[c] 1.8 GHz	PD_NPU0–7	2	4 each	236 TFLOPS FP8 each
AI datapath (SS2)	ai_datapath	1	clk_dp 2.0 GHz	PD_DP	3	4	40 × 36, 8.19 TB/s
Scheduler (SS3)	scheduler	1	clk_noc 2.0 GHz	PD_NOC	1	16	64 queues, < 1 µs dispatch
NoC (SS4)	noc_top	1	clk_noc / clk_cfg	PD_NOC	0	4	30 routers, 128 GB/s ports
PCIe / CXL (SS5)	pcie_cxl_subsystem	1	clk_pcie 1.0 GHz	PD_PCIE	4	16	x16 128 GT/s
Ethernet (SS6)	eth_subsystem / eth_port	1 / 8	clk_eth 1.25 GHz	PD_ETH	5	4 / port	8 × 100 GbE
HBM4 (SS7)	hbm_stack	4	clk_mem 2.0 GHz	PD_HBM	6	2 each	2.048 TB/s, 48 GB each
DDR5 (SS7)	ddr_subsystem	1	clk_mem 2.0 GHz	PD_DDR	6	8	4 ch, 204.8 GB/s
DMA (SS8)	dma_engine	8	clk_noc 2.0 GHz	PD_DMA	7	2 each	128 GB/s each
CPU domain (SS9)	cpu_domain	4	clk_cpu[d] 1.0–2.0 GHz	PD_CPU0–3	8	2 each	4 RV64 cores each
Power mgmt (SS10)	power_mgmt	1	clk_aon 100 MHz	AON	9	4	20 domains, < 100 ns throttle
Security RoT (SS11)	sec_rot	1	clk_cfg 500 MHz	AON	10	4	PQC secure boot
RAS (SS11)	ras_aggregator	1	clk_cfg 500 MHz	AON	10	8	14 sources, ≤ 100 ns fatal
Interrupt controller	irq_ctrl	1	clk_noc 2.0 GHz	AON	11	—	256 sources, 32 contexts
Clock & reset	clock_reset	1	ref 100 MHz	AON	12	2	6 PLLs, 20 domains
Debug & trace	debug_trace	1	clk_dbg 250 MHz	PD_DBG	13	4	11 trace sources

NPU / tensor compute cluster (Subsystem 1) – One of eight identical clusters. Each cluster is an independent clock and power domain and receives work from the scheduler.

Category	Parameter	Specification
Identity	RTL module / instances	npu_cluster × 8, inside npu_subsystem
Compute	Tensor cores	4 per cluster; 128 × 128 output-stationary systolic array (16,384 MACs per core)
	Data formats	FP4, FP6, FP8 (E4M3, E5M2), MXFP4/6/8 block-scaled, BF16, FP16, INT8; FP32 accumulation
	Peak throughput per cluster	FP8 / INT8: 236 TFLOPS / TOPS; BF16 / FP16: 118 TFLOPS; FP4: 472 TFLOPS; 2× with 2:4 structured sparsity
	Accumulators	128 × 128 FP32 per core (64 KB register file), double-buffered for back-to-back tiles
	Vector unit	4 lanes × 2048-bit SIMD: 0.92 TFLOPS FP32, 1.84 TFLOPS BF16 (FMA); integer, compare, permute, reduce
	Special-function unit	64 results per cycle (115 G/s): exp, reciprocal, rsqrt, tanh, sigmoid, GELU, log
Memory	Scratchpad SRAM	16 MB in 32 banks × 512 KB; 512-bit port per bank; ≈3.7 TB/s read (2× the 1.8 TB/s tensor-core demand)
	Protection	SECDED per 64 bits; scrubbing; ECC errors reported to RAS
	Control processor memory	32 KB I-TCM + 32 KB D-TCM
Data movement	Tile movers	2 per cluster, each driving 2 datapath ports; up to 5-D strided descriptors; transpose; format conversion
	Outstanding requests	64 × 4 KB reads per mover (512 KB per cluster in flight), covering ≈500 ns loaded latency at full rate
	Datapath bandwidth	4 × 256 GB/s = 1.02 TB/s read + 1.02 TB/s write
Control	Control processor	RV32IMAFC (SiFive E76-class), not user-programmable
	Command interface	16-entry command FIFO; npu_cmd_t / npu_cpl_t; barrier arrive
Clocking	Core clock	clk_npu[c]: 1.8 GHz nominal, 0.6–2.2 GHz DVFS (from NPU PLL A or B)
	Port clocks	Datapath and C2C ports on clk_dp; NoC and command ports on clk_noc; CSR on clk_cfg; PM on clk_aon
Power	Domain / states	PD_NPU0–7; OFF, RETENTION (SRAM retained), IDLE, LOW, NOMINAL, TURBO
	Throttle	throttle_t input: 8 levels; fast droop throttle within 100 ns
Interfaces	AI datapath	4 × AXI4 1024-bit managers (dp_req/rsp)
	System NoC	1 × AXI4 512-bit manager; 1 × AXI4 512-bit subordinate (SRAM window, 16 MB in a 256 MB slot)
	C2C ring	512-bit flit TX and RX with ready
RAS	Features	SECDED on SRAM and accumulator RF; parity on pipelines; poison consumption aborts the job only; ERR_INJECT
Registers / IRQ	CSR window / interrupts	Window 2, 1 MB per cluster; 4 interrupt lines per cluster
IP	Source	In-house tensor cores, vector unit, movers; licensed control core; foundry memory compilers
Budget	Area / power per cluster	52 mm² / 50 W at FP8 full load (≈4.7 TFLOPS/W)

AI Fabric (Subsystem 2) – Dedicated memory fabric between the clusters and HBM/DDR, sized to carry the full HBM bandwidth.

Category	Parameter	Specification
Identity	RTL module	ai_datapath
Ports	Initiators	40: 32 NPU AXI4 1024-bit + 8 NoC AXI4 512-bit (up-sized to 1024-bit with async width converters)
	Targets	36: 32 HBM AXI4 1024-bit + 4 DDR AXI4 512-bit
Topology	Quadrant switches	4 (one per HBM stack); each 13 × 12 crossbar: 10 local initiators + 3 mesh inputs, 9 local targets + 3 mesh outputs
	Inter-quadrant mesh	6 bidirectional links (full mesh); 3 × 1024-bit lanes per direction per link = 768 GB/s; 9.2 TB/s aggregate
	Mesh headroom	1.5× the 6.1 TB/s that uniform hashing sends across quadrants
Performance	Peak bandwidth	8.19 TB/s NPU ↔ HBM; 1.02 TB/s NoC ↔ memory
	Zero-load latency (one way)	≤ 4 ns quadrant-local; ≤ 10 ns via mesh
	Outstanding	Per NPU port 64 reads + 32 writes; per NoC port 128 reads + 64 writes
Addressing	HBM interleave	All 32 ports; default 256 B granule with XOR hash; selectable 4 KB, 2 MB, or NUMA (home quadrant)
	DDR interleave	4 channels at 4 KB
QoS	Regulation	40 token-bucket regulators (1 GB/s granularity); 4 priority levels from AxQOS; age escalation
	DRAM efficiency	Read/write batching with programmable watermarks toward HBM
C2C ring	Configuration	8 nodes, bidirectional, 512-bit at 2 GHz: 128 GB/s per hop per direction; 2 virtual channels; credit-based
	Latency / protection	2 ns per hop; CRC with link-level retry
Clocking / power	Clock / domain	clk_dp 2.0 GHz (fixed); PD_DP, gated only when all HBM is idle
RAS	Features	ECC sideband on every beat; poison propagation in axi_user_t; write-data parity; response timeouts
Registers / IRQ	CSR window / interrupts	Window 3; 4 interrupt lines
IP	Source	Arteris FlexNoC 5 (FlexGen) for switches; in-house hash, regulators and C2C ring
Budget	Area / power	30 mm² / 25 W

Scheduler / command processor (Subsystem 3)

Category	Parameter	Specification
Identity	RTL module	scheduler
Queues	Host submission queues	64 ring buffers (host or device memory), up to 64K entries each; one 4 KB doorbell page per queue at CSR +8 MB, mappable to a VF
	Hardware run-queues	16, with 4 priority levels
	Tenants	16 tenant contexts; weighted fair share; per-tenant cluster masks
	Execution contexts	4,096 (12-bit ctx_id in npu_cmd_t)
Dispatch	Rate	Up to 1 command per cluster per cycle at 2 GHz; sustained ≥ 100 M commands/s
	Latency	Doorbell to first dispatch < 1 µs for device-memory queues
	Targets	8 NPU clusters (npu_cmd_t) and 8 DMA engines (dma_cmd_t)
Synchronization	Hardware barriers	64 barriers / counting semaphores
	Fences	64-bit timeline values written to memory; host-visible
Preemption	Modes	Cooperative at tile boundaries; forced after programmable timeout (1 µs – 1 s)
Control	Micro-controller	RV32IMAFC (SiFive E76-class), 64 KB I-TCM + 64 KB D-TCM; handles exceptional commands
	Queue state SRAM	512 KB, SECDED
Clocking / power	Clock / domain	clk_noc 2.0 GHz; PD_NOC (system functional, not gated)
Interfaces	Buses and sideband	1 × AXI4 512-bit NoC manager; 8 × command / completion; barrier arrive / release; 8 × DMA command / completion; throttle input
RAS	Features	Command watchdog per cluster; ECC on queue SRAM; errors to RAS
Registers / IRQ	CSR window / interrupts	Window 1 (doorbells at +8 MB); 16 interrupt lines
IP	Source	In-house dispatch engine; licensed micro-controller; DesignWare timers and watchdog
Budget	Area / power	4 mm² / 2 W

NoC / interconnect (Subsystem 4)

Category	Parameter	Specification
Identity	RTL module	noc_top
Data NoC	Topology	6 × 5 2D mesh, 30 routers, XY routing; separate request and response networks
	Links	512-bit at 2.0 GHz: 128 GB/s per port per direction
	Router	2-cycle pipeline; 4 virtual channels × 8-flit buffers per input
	Latency	≈1.5 ns per hop; ≤ 15 ns corner to corner at zero load
	Bisection	≈1.5 TB/s per physical network
Ports	Initiator NIs	27: PCIe 2, Ethernet 2, DMA 8, CPU 4, NPU 8, scheduler 1, debug 1, security 1
	Target NIs	23: AI-datapath memory 8, PCIe outbound 2, NPU SRAM 8, CPU SRAM 4, security mailbox 1
	Protocol	AXI4, 48-bit address, 12-bit ID after remap, 16-bit user (axi_user_t); 64 outstanding per NI
QoS	Traffic classes	TC0 control (strict, capped), TC1 latency (WRR high), TC2 bulk (WRR + token buckets), TC3 network (≥ 100 GB/s reserved)
Security	Firewalls	Per target NI: 16 regions, 16-bit domain allow mask, secure attribute; locked by RoT (fw_cfg_lock)
	Identity stamping	Domain, tenant, secure and TC stamped by initiator NIs in hardware
RAS	Timeouts	Per target NI, programmable 1 µs – 100 ms; returns SLVERR and reports to RAS
Config NoC	Structure	AXI → APB bridge; APB4 32-bit tree at 500 MHz (clk_cfg); 14 ports, 16 MB window each
Clocking / power	Clock / domain	clk_noc 2.0 GHz (1.0–2.0 GHz); PD_NOC, never power-gated, idle routers clock-gated
Observability	Probes	Per-link bandwidth, VC occupancy and latency counters; feeds debug trace
Registers / IRQ	CSR window / interrupts	Window 0; 4 interrupt lines
IP	Source	Arteris FlexNoC 5 with FlexGen; FlexNoC Resilience Package
Budget	Area / power	25 mm² / 15 W

PCIe / CXL (Subsystem 5)

Category	Parameter	Specification
Identity	RTL module	pcie_cxl_subsystem
Link	Standard / rate	PCIe 7.0, 128 GT/s PAM4, FLIT mode; backward compatible to Gen 1
	Width	x16; bifurcation x16, 2 × x8, 4 × x4
	Bandwidth	256 GB/s raw, ≈242 GB/s effective per direction
CXL	Device type	CXL 4.0 Type-2: CXL.io, CXL.cache, CXL.mem
	Coherency	Device coherency engine (DCOH) with 4 MB snoop filter
	Memory exposure	HBM + DDR (up to 704 GB) as host-managed device memory; 4 HDM decoders
Virtualization	Functions	SR-IOV: 1 PF + 63 VFs; FLR per function
	Address translation	ATS with 2,048-entry device TLB; PRI
	Interrupts	MSI-X, 2,048 vectors across PF and VFs
Security	Link encryption	IDE (AES-256-GCM): link IDE and up to 8 selective IDE streams; keys from RoT key bus
	Attestation / TEE	DOE mailbox; SPDM 1.3 responder; TDISP for confidential device assignment
Power	States	Link L0, L0p, L1, L1.2; device D0, D3hot, D3cold; PD_PCIE
Clocking	Clocks	pcie_refclk 100 MHz; controller clk_pcie 1.0 GHz; PIPE to PHY
Interfaces	NoC	2 × AXI4 512-bit managers (inbound), 2 × AXI4 512-bit subordinates (outbound) = 256 GB/s per direction
	Sideband	msi_req_t from interrupt controller; host_err_t (AER) from RAS; PERST#, CLKREQ#, WAKE#
Timing	Boot	Link training complete < 100 ms after PERST# deassertion (from ROM defaults)
RAS	Features	LCRC / FLIT CRC with replay; AER correctable, non-fatal, fatal
Registers / IRQ	CSR window / interrupts	Window 4; 16 interrupt lines
IP	Source	Synopsys PCIe 7.0 controller with CXL 4.0, PCIe 7.0 PHY, IDE security module
Budget	Area / power	23 mm² / 12 W

100G Ethernet × 8 (Subsystem 6)

Category	Parameter	Specification
Identity	RTL module	eth_subsystem with eth_port × 8
PHY	Ports / lanes	8 × 100GBASE-KR1 / CR1, one 112G PAM4 SerDes lane each (106.25 Gb/s line rate)
	Ganging	2 × 400G or 4 × 200G
	FEC	RS(544,514)
MAC	Features	IEEE 802.3; frames up to 9,216 B; PFC (8 priorities); ETS; IEEE 1588 PTP one- and two-step timestamping
RDMA	Transport	RoCEv2 offload: Send/Receive, Write, Read, Atomics; reliable connected and unreliable datagram
	Scale	16K queue pairs; programmable congestion control (DCQCN-compatible)
	Latency target	< 2 µs one-way RDMA write chip to chip through one switch
Collectives	Engine	All-reduce, reduce-scatter, all-gather, broadcast; ring and tree algorithms; FP32 / BF16 / FP8 reductions in-line
Buffering	Packet buffer	8 MB shared, ECC
Security	Encryption	MACsec and PSP at line rate (AES-GCM-256); keys from RoT key bus
Bandwidth	Aggregate	800 Gb/s = 100 GB/s per direction
Clocking / power	Clock / domain	eth_refclk 156.25 MHz; clk_eth 1.25 GHz; PD_ETH with per-port gating
Interfaces	NoC	2 × AXI4 512-bit managers on TC3 (256 GB/s)
	Module management	Shared I²C; per-port presence, interrupt, reset, low-power pins
Registers / IRQ	CSR window / interrupts	Window 5: 1 MB per port + engine; 4 interrupt lines per port (32)
IP	Source	Synopsys 112G PHY, 800G PCS, 100–800G MAC, MACsec; in-house RDMA and collective engine
Budget	Area / power	22 mm² / 15 W

HBM4 memory (Subsystem 7) – Specification per stack; the SoC has four.

Category	Parameter	Specification
Identity	RTL module	hbm_stack × 4, inside memory_subsystem
Device	Standard	JEDEC JESD270-4 (HBM4)
	Capacity	48 GB per stack (16-high, 24 Gb dies); 192 GB total
	Interface	2048 DQ: 32 channels × 64 DQ, 2 pseudo-channels per channel (64 per stack)
	Data rate	8 Gb/s per pin → 2.048 TB/s per stack, 8.19 TB/s total
Controller	Host ports	8 × AXI4 1024-bit (256 GB/s each), each serving 4 channels
	Scheduling	Out-of-order FR-FCFS, bank-group aware; 64-entry read and 64-entry write queue per channel; write-drain watermarks
	Refresh	All-bank and per-bank refresh; refresh management (RFM); temperature-compensated
	PHY interface	DFI 5.x
Performance	Zero-load read latency	≤ 60 ns at the controller port (row miss)
	Efficiency	≥ 85% of peak for streaming reads; ≥ 75% for mixed 2:1 read/write random 256 B
RAS	Features	On-die ECC + controller ECC on ECC pins; error check and scrub (ECS); soft and hard post-package repair; poison on uncorrectable
Thermal	Monitoring	3-bit temperature and catastrophic trip per stack to power management
Test	Access	IEEE 1500 wrapper per stack; PHY BIST and loopback
Clocking / power	Clock / domain	clk_mem 2.0 GHz controller; host ports on clk_dp; PD_HBM; self-refresh in RETENTION and OFF
Registers / IRQ	CSR window / interrupts	Window 6, 2 MB per stack; 2 interrupt lines per stack
IP	Source	Rambus HBM4 controller; Synopsys or Cadence HBM4 PHY
Budget	Area / power	24 mm² per stack (PHY 18 + controller 6) / 8 W PHY + controller; DRAM stack ≈30 W in package

DDR5 memory (Subsystem 7)

Category	Parameter	Specification
Identity	RTL module	ddr_subsystem, inside memory_subsystem
Device	Standard / speed	JEDEC JESD79-5 DDR5-6400 RDIMM, 1 DIMM per channel
	Channels	4; each 2 sub-channels × 40 bit (32 data + 8 ECC)
	Capacity	Up to 128 GB per channel, 512 GB total
Performance	Bandwidth	204.8 GB/s peak; ≥ 174 GB/s sustained
	Zero-load read latency	≤ 90 ns at the controller port
Controller	Host ports	4 × AXI4 512-bit (one per channel) on clk_dp
	Scheduling	FR-FCFS, 64-entry queues per channel
	PHY interface	DFI 5.x; training (write leveling, read and write centering, Vref) run by CPU D0
RAS	Features	SDDC-class (x4 chipkill) ECC; on-die ECC; patrol scrub; post-package repair; alert handling
Security	Inline encryption	AES-XTS-256 at line rate; 16 key slots (per tenant) from RoT key bus
Clocking / power	Clock / domain	clk_mem 2.0 GHz; PD_DDR; self-refresh in RETENTION and OFF
Registers / IRQ	CSR window / interrupts	Window 6 at +8 MB; 8 interrupt lines (2 per channel)
IP	Source	Synopsys DDR5 controller and PHY; Synopsys inline memory encryption module
Budget	Area / power	16 mm² / 8 W

DMA engine (Subsystem 8) – Specification per engine; the SoC has eight.

Category	Parameter	Specification
Identity	RTL module	dma_engine × 8, inside dma_subsystem
Bandwidth	Per engine / total	128 GB/s (512-bit at 2 GHz) / 1.02 TB/s
Channels	Count / arbitration	16 per engine (128 total); priority + weighted round-robin
Descriptors	Formats	Linear, 2-D, 3-D strided, scatter-gather linked list; up to 4 GB per descriptor
	Sources of work	CSR doorbell (CPU) or dma_cmd_t from the scheduler
Latency tolerance	Outstanding reads	128 reads up to 4 KB each (512 KB in flight), covering ≈4 µs at full rate — enough for PCIe host reads
	Reorder buffer	256 KB, ECC
Transforms	In-flight operations	FP32 ↔ BF16 / FP16 / FP8 conversion; CRC32C; fill pattern
Completion	Reporting	dma_cpl_t to scheduler and / or 2 interrupt lines per engine
Clocking / power	Clock / domain	clk_noc 2.0 GHz; PD_DMA
QoS	Traffic class	TC2 bulk, limited by NoC token buckets
Registers / IRQ	CSR window / interrupts	Window 7, 1 MB per engine; 2 interrupt lines per engine
IP	Source	In-house
Budget	Area / power	1 mm² / 0.6 W per engine (8 mm² / 5 W total)

CPU / firmware domain (Subsystem 9) – Specification per domain; the SoC has four isolated domains.

Category	Parameter	Specification
Identity	RTL module	cpu_domain × 4, inside cpu_subsystem
Roles	D0 / D1 / D2 / D3	System management and RAS / runtime / network control plane / host interface
Cores	D0	4 × RV64GC in-order (SiFive P550-class); cores 0–1 can run as a dual-core lockstep pair
	D1–D3	4 × RV64GCV out-of-order with vector (SiFive P870-class)
	Frequency	D0 1.0 GHz; D1–D3 2.0 GHz with DVFS
Memory	Caches	Private L1 instruction and data caches per core; 2 MB shared L2 per domain, ECC
	Tightly coupled SRAM	1 MB per domain, visible in the CPU SRAM window (16 MB slot per domain)
	Protection / translation	PMP and Smepmp; Sv39 / Sv48 MMU on D1–D3 (Linux-capable); D0 runs an RTOS
Interrupts	Inputs	RISC-V AIA: IMSIC per core (M and S files), external MEIP / SEIP, NMI from RAS
Isolation	Mechanisms	Separate clock, reset, power domain and NoC domain ID; inter-domain traffic only through 4 hardware mailboxes per domain
Debug	Access	RISC-V Debug 1.0 via DMI from debug_trace, gated by dbg_auth_t
Safety	Watchdog	1 per domain, reports to RAS
Boot	Release	Held in reset until the RoT verifies the image and asserts cpu_rel[d]; boot vector from RoT
Interfaces	NoC	1 × AXI4 512-bit manager; 1 × AXI4 512-bit subordinate (TCM window)
	D0 peripherals	UART console, 16 GPIO
Clocking / power	Clock / domain	clk_cpu[d]; PD_CPU0–3 (D0 never gated; D1–D3 gateable with L2 retention)
Registers / IRQ	CSR window / interrupts	Window 8, 4 MB per domain; 2 mailbox interrupt lines per domain
IP	Source	SiFive Performance P870 and P550; DesignWare UART and GPIO; in-house mailboxes and lockstep wrapper
Budget	Area / power	6 mm² / 5 W per domain (24 mm² / 20 W total)

Power management (Subsystem 10)

Category	Parameter	Specification
Identity	RTL module	power_mgmt
Controller	Processor	RV32IMAFC (SiFive E76-class), 64 KB I-TCM + 64 KB D-TCM; firmware verified by the RoT
Domains	Power domains	20 gateable domains (pd_e) plus the always-on domain
	P-states	OFF, RETENTION, IDLE, LOW, NOMINAL, TURBO via pm_req_t / pm_rsp_t handshake
	Transition targets	IDLE ↔ NOMINAL < 1 µs (clock gating); RETENTION ↔ NOMINAL < 50 µs; OFF ↔ NOMINAL < 1 ms
DVFS	Frequency control	clk_ctrl_t per clock domain (enable, PLL select, divider); NPU 0.6–2.2 GHz, CPU 1.0–2.0 GHz
	Voltage control	AVS over PMBus to board regulators, per rail
Sensing	On-die sensors	64 thermal sensors (±1 °C after calibration); 32 voltage-droop detectors; 8 process monitors
	External	HBM temperature and catastrophic trip per stack
Control loops	TDP loop	≈1 ms period; activity-based power estimate per domain
	Fast throttle	Droop or di/dt event to cluster throttle in < 100 ns
	Thermal trip	Hardware thermtrip_n at 125 °C, independent of firmware
Telemetry	Reporting	Per-domain power and temperature at 1 kHz, reported to host through CPU D3
Clocking / power	Clock / domain	clk_aon 100 MHz; always-on domain
Registers / IRQ	CSR window / interrupts	Window 9; 4 interrupt lines
IP	Source	SiFive E76-class controller; Synopsys SLM PVT monitors; DesignWare I²C (PMBus)
Budget	Area / power	2 mm² / 0.5 W

Security root of trust (Subsystem 11)

Category	Parameter	Specification
Identity	RTL module	sec_rot, inside security_ras
Processor	Core / memory	RV32 RoT core; boot ROM (1 MB window); 1 MB secure SRAM; private to the RoT
Storage	OTP	16 KB: root keys, lifecycle state, anti-rollback counters, repair data
	Boot flash	QSPI, A/B firmware images
Crypto	Symmetric / hash	AES-256 (GCM, XTS, CTR); SHA-2 and SHA-3; HMAC; KDF (NIST SP 800-108)
	Public key	ECDSA P-384; ML-DSA-87 and ML-KEM-1024 (FIPS 204 / 203)
	Random numbers	TRNG with SP 800-90B health tests; DRBG
Boot	Secure and measured boot	Dual signatures (ECDSA-P384 + ML-DSA-87) on every image; measurements recorded for attestation
Attestation	Protocol	SPDM 1.3 responder via PCIe DOE; DICE-based device identity
Keys	Key bus	Side-loaded keys to PCIe IDE, Ethernet MACsec / PSP and DDR encryption; never visible to software
Lifecycle	States	RAW, TEST, DEV, PROD, RMA, SCRAP; gates debug and test features
Isolation	Controls	cpu_rel and boot vectors per domain; NoC firewall lock; debug authorization (dbg_auth_t)
Tamper	Detection	Voltage and clock glitch detectors
Certification	Target	Designed for FIPS 140-3 validation
Clocking / power	Clock / domain	clk_cfg 500 MHz; always-on domain
Registers / IRQ	CSR window / interrupts	Window 10 (+0); 4 interrupt lines
IP	Source	Rambus RT-6xx Root of Trust; Rambus Quantum Safe Engine; Synopsys NVM OTP
Budget	Area / power	3 mm² / 0.5 W

Error management / RAS (Subsystem 11)

Category	Parameter	Specification
Identity	RTL module	ras_aggregator, inside security_ras
Inputs	Error sources	14 (one ras_err_t per top-level block): corrected, deferred, uncorrected, fatal + 8-bit code
Records	Format	Per-source error records in RISC-V RERI layout: status, address, syndrome, 64-bit timestamp
	Retention	Preserved across warm reset (always-on and configuration domains)
Policy	Thresholds	Per-source corrected-error thresholds and leaky-bucket storm detection
	Escalation	Interrupt → NMI to all domains → host AER → fault_n pin → optional warm reset
Timing	Targets	Fatal to NMI ≤ 50 ns; fatal to fault_n ≤ 100 ns
Validation	Injection	Error injection in every block through the common ERR_INJECT register
Clocking / power	Clock / domain	clk_cfg 500 MHz; always-on domain
Registers / IRQ	CSR window / interrupts	Window 10 (+8 MB); 8 interrupt lines
IP	Source	In-house
Budget	Area / power	1 mm² / 0.5 W

Interrupt controller

Category	Parameter	Specification
Identity	RTL module	irq_ctrl
Wired interrupts	APLIC	256 level-sensitive sources (166 used); 2-flop synchronizers; 7 priority levels
	Contexts	32: 4 domains × 4 cores × machine and supervisor
Message interrupts	IMSIC	Per core, machine and supervisor files, 255 identities each
Host interrupts	MSI-X generator	2,048 vectors, tagged with PF / VF index
Latency	Targets	Source to core ≤ 20 ns; scheduler completion to MSI-X on the link ≤ 300 ns
Security	Routing lock	Source-to-domain routing set by secure firmware and locked
Clocking / power	Clock / domain	clk_noc 2.0 GHz; always-on domain
Registers	CSR window	Window 11
IP	Source	In-house, RISC-V AIA 1.0 compliant
Budget	Area / power	1 mm² / 0.5 W

Clock and reset

Category	Parameter	Specification
Identity	RTL module	clock_reset (with rst_sync, clk_gate)
References	Inputs	ref_clk_100m; pcie_refclk 100 MHz; eth_refclk 156.25 MHz
PLLs	Count / type	6: SYS (4.0 GHz VCO), NPU A, NPU B, CPU, MEM, plus PHY-internal PLLs; fractional-N; lock < 50 µs
Distribution	Domains	20 clock domains (clk_e); divider 1–16, glitch-free mux and ICG per domain
	Monitoring	Clock monitor on every PLL output: loss of lock and frequency deviation > 1% → RAS
Reset	Structure	20 domain resets; asynchronous assert, synchronous de-assert through 3-stage synchronizers
	Sequencing	POR → AON + RoT → PLLs → fabrics → CPU domains on cpu_rel; warm reset from RAS preserves AON and CFG
DFT	Test controls	Clock-gate override and reset-synchronizer bypass in test mode
Clocking / power	Domain	Always-on
Registers / IRQ	CSR window / interrupts	Window 12; 2 interrupt lines (PLL unlock, clock-monitor fault)
IP	Source	Analog Bits PLLs; in-house sequencer and monitors
Budget	Area / power	3 mm² / 2 W

Debug, trace and DFT

Category	Parameter	Specification
Identity	RTL module	debug_trace
Debug access	JTAG	IEEE 1149.1 TAP; IEEE 1687 (IJTAG) network; RISC-V DTM → DMI to the 4 CPU domains
	Authorization	dbg_auth_t from RoT (invasive, non-invasive, secure); lifecycle-gated
Trace	Sources / funnel	11 sources × 64-bit trace (trc_e); funnel with per-source IDs
	Storage	64 KB on-chip trace buffer; trace router spills to DDR (up to 4 GB) over a NoC manager
	Cross-trigger	8 channels across all 14 blocks
	Timestamp	Global 64-bit counter on clk_aon, broadcast to all blocks
DFT	Scan	Compressed scan; targets ≥ 99% stuck-at, ≥ 95% transition-fault coverage
	Memory test	MBIST with repair for all SRAMs (128 MB scratchpad included)
	PHY test	SerDes loopback and PRBS; HBM IEEE 1500 and BIST; DDR PHY BIST
Clocking / power	Clock / domain	clk_dbg 250 MHz; PD_DBG
Registers / IRQ	CSR window / interrupts	Window 13; 4 interrupt lines
IP	Source	Siemens Tessent Embedded Analytics, IJTAG and MBIST; Synopsys TestMAX (alternative)
Budget	Area / power	4 mm² / 1 W

Area and power budget – Each block team designs to the allocation below. The logic die must stay under the reticle limit with margin for floorplan whitespace, and the package must stay inside the 750 W TDP with a margin for estimation error and voltage-regulation effects.

Block	Instances	Area each (mm²)	Area total (mm²)	Power total (W)	Share of die area
NPU cluster	8	52	416	400	53%
HBM4 controller + PHY	4	24	96	32	12%
AI datapath	1	30	30	25	4%
NoC (data + config)	1	25	25	15	3%
CPU domains	4	6	24	20	3%
PCIe / CXL	1	23	23	12	3%
Ethernet ×8	1	22	22	15	3%
DDR5 controller + PHY	1	16	16	8	2%
DMA	8	1	8	5	1%
Scheduler	1	4	4	2	0.5%
Security RoT + RAS	1	4	4	1	0.5%
Debug and trace	1	4	4	1	0.5%
Clock and reset	1	3	3	2	< 1%
Power management	1	2	2	0.5	< 1%
Interrupt controller	1	1	1	0.5	< 1%
Top-level routing, DFT, I/O, whitespace	—	—	102	3	13%
Logic die total			780	542	100%
HBM4 DRAM stacks (in package)	4	—	—	120	—
Package total				662
Margin to 750 W TDP				88 (12%)

SoC Overview

The SoC is a data-center accelerator card ASIC for large-model AI. It targets three workload classes: training of large transformer models (compute and network bound), inference prefill (compute bound) and inference decode (memory-bandwidth bound). The architecture therefore balances raw tensor throughput with very high HBM bandwidth, a dedicated memory fabric, low-latency collectives inside the chip, and an 800 Gb/s scale-out network between chips.

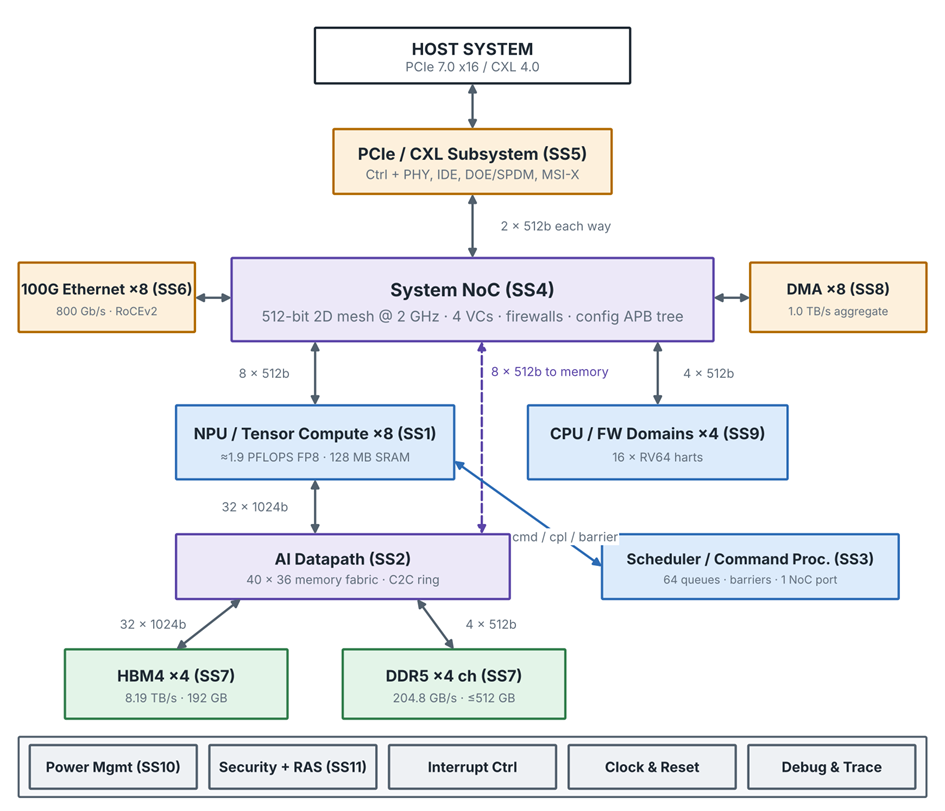

Two separate fabrics carry data. The System NoC carries control, host, DMA and network traffic between all subsystems. The AI Datapath is a dedicated high-bandwidth memory fabric between the NPU clusters and HBM/DDR, so that bulk tensor traffic never competes with control or host traffic. The NoC reaches memory through eight ports into the AI Fabric (ai_datapath).

Subsystem Summary

#	Subsystem	Primary function	Principal IP
1	NPU / Tensor Compute	Matrix and vector compute, 8 clusters	In-house tensor cores; SiFive E-series control cores
2	AI Datapath	Compute-to-memory fabric, collective ring	Arteris FlexNoC 5 / in-house crossbar
3	Scheduler / Command Processor	Host queues, dispatch, synchronization	In-house dispatch engine; SiFive E76 µC
4	NoC / Interconnect	System data network and CSR network	Arteris FlexNoC 5 with FlexGen
5	PCIe / CXL	Host link, CXL.mem/.cache, MSI-X	Synopsys PCIe 7.0 + CXL 4.0 controller and PHY
6	100G Ethernet ×8	Scale-out network, RDMA	Synopsys 112G PHY, 800G MAC/PCS
7	HBM / DDR Memory	HBM4 and DDR5 controllers and PHYs	Rambus HBM4 controller; Synopsys DDR5
8	DMA	Bulk data movement	In-house engines
9	CPU / Firmware Domains	Management and runtime firmware	SiFive P870 / P550
10	Power Management	DVFS, power gating, thermal	SiFive E-series; Synopsys SLM PVT monitors
11	Security + RAS	Root of trust, keys, error management	Rambus RT-6xx Root of Trust

End-to-end command flow

The following sequence shows how a unit of AI work travels through the chip; it is the main use case the architecture is optimized for.

– The host writes command buffers to host or device memory and rings a doorbell (a write to the scheduler’s doorbell page through PCIe and the NoC).
– The scheduler fetches the command descriptors, resolves dependencies (barriers and semaphores) and applies tenant QoS.
– The scheduler dispatches commands to one or more NPU clusters over dedicated sideband links, and kicks DMA engines for host transfers.
– Clusters stream weights and activations from HBM through the AI datapath into their SRAM, compute, and exchange partial results over the C2C ring; cross-chip collectives go out through the Ethernet RDMA engine.
– Clusters return completions; the scheduler writes a completion record and fence value to memory.
– The interrupt controller sends an MSI-X to the host, which retires the work.

IP Strategy

The program licenses standards-based IP where the standard defines the behaviour and silicon-proven PHYs carry high risk (PCIe, CXL, Ethernet, HBM, DDR, root of trust, NoC generation tooling, RISC-V CPU cores). It develops in-house the blocks that differentiate the product: tensor cores, vector units, the AI datapath’s hashing and QoS, the scheduler dispatch engine, the high-throughput DMA engines, the collective ring and the RDMA/collective offload engine.

Criterion	Licensed IP	In-house IP
Standard defines behaviour	Preferred (compliance, interop)	Avoid
Mixed-signal / SerDes / PHY	Required	Not planned
Product differentiation	Avoid	Preferred
Schedule risk	Lower for proven IP	Higher; mitigated by early RTL shells
