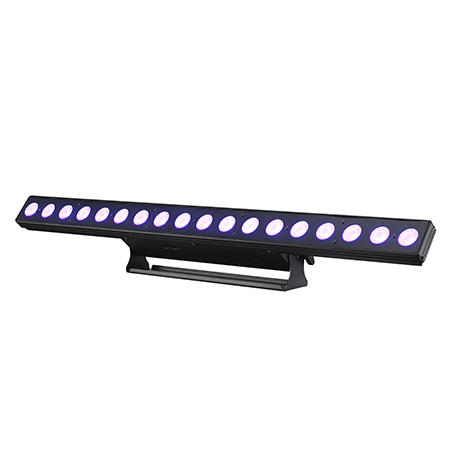

LS176, 18x10W RGBW Ultra-bright Pixel Control Bar Light
The 18×10W RGBW Ultra-Bright LED Bar Light delivers powerful illumination with true RGBW color mixing and full pixel control, enabling stunning dynamic patterns for stage, architectural, event, and entertainment environments. The LS176 is equipped with eighteen high-output 10W LEDs, each built with 4-in-1 RGBW technology to produce deep saturated colors, smooth pastels, and accurate whites. Designed with a durable housing and multiple control modes, it is ideal for both portable event setups and long-term fixed installations.
Technical Specification
Photometric Data

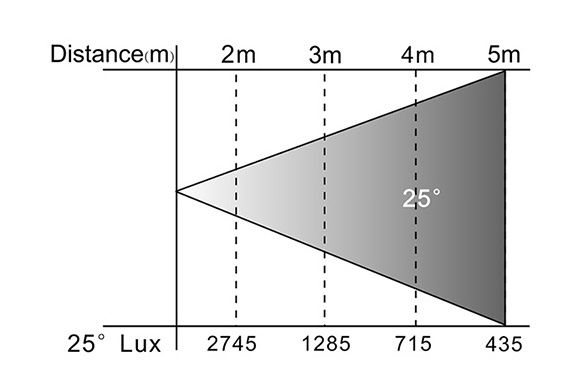

Beam Angle
Beam angle of a light fixture, specifically demonstrating a 25° beam angle, defining the spread of light output. As the distance increases, the light spreads out more, causing the intensity (Lux) to decrease.
The diagram visually represents how light disperses over distance at a fixed beam angle, leading to a reduction in light intensity (Lux) as the illuminated area expands.
Intensity
The intensity (Lux) decreases as the distance from the light source increases, which is typical for light propagation.
This table illustrates the central illuminance at various distances for a light fixture with a 25° beam angle.
| Distance (m) | Lux (25° Beam Angle) |
|---|---|
| 2 | 2745 |
| 3 | 1286 |
| 4 | 715 |
| 5 | 435 |

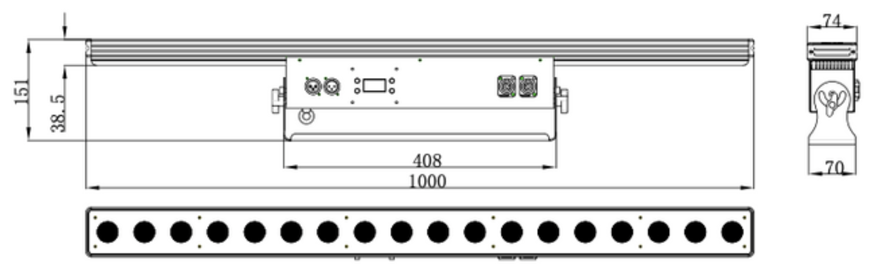

Mechanical Dimensions
